Tyc MyCarParts

1318

Radiator

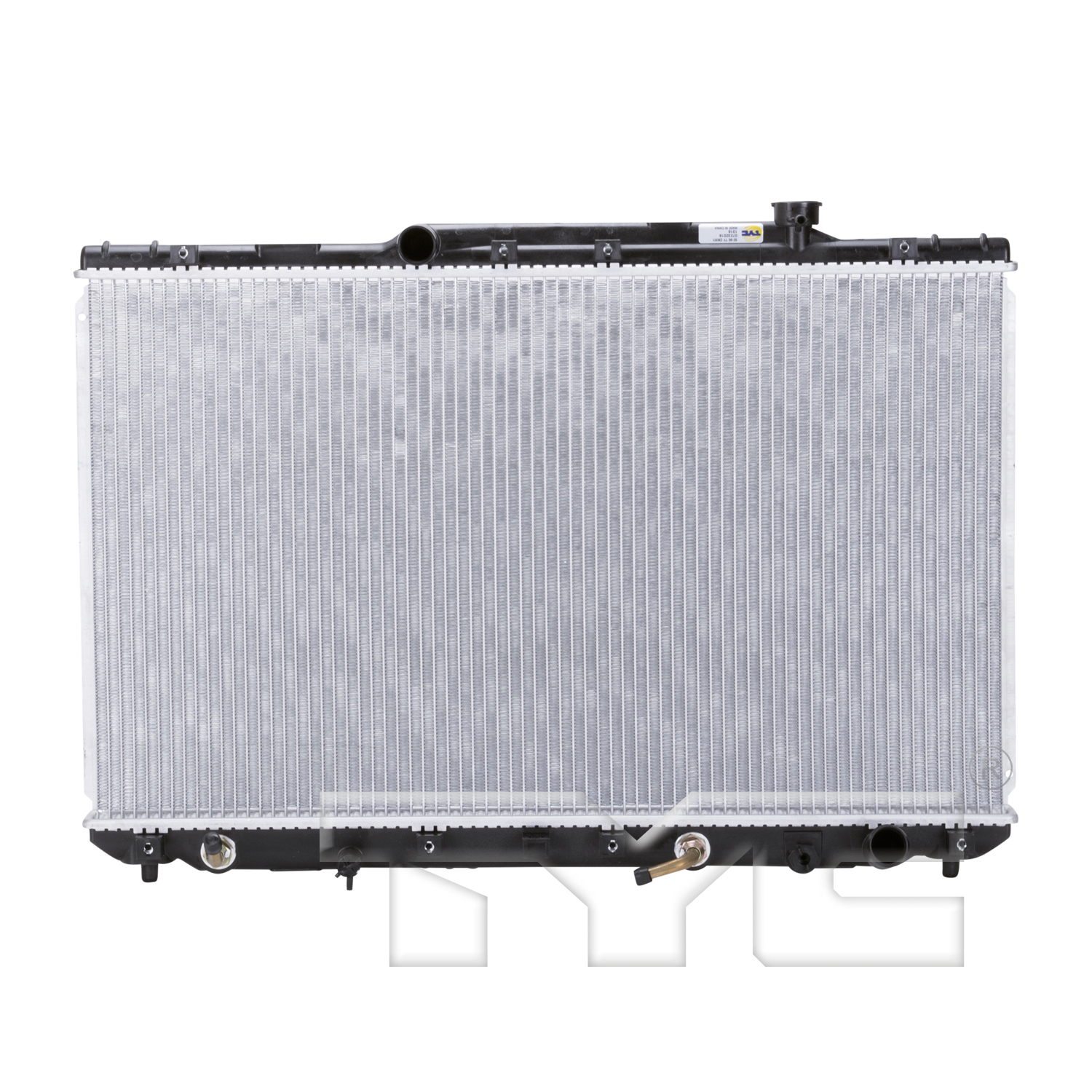

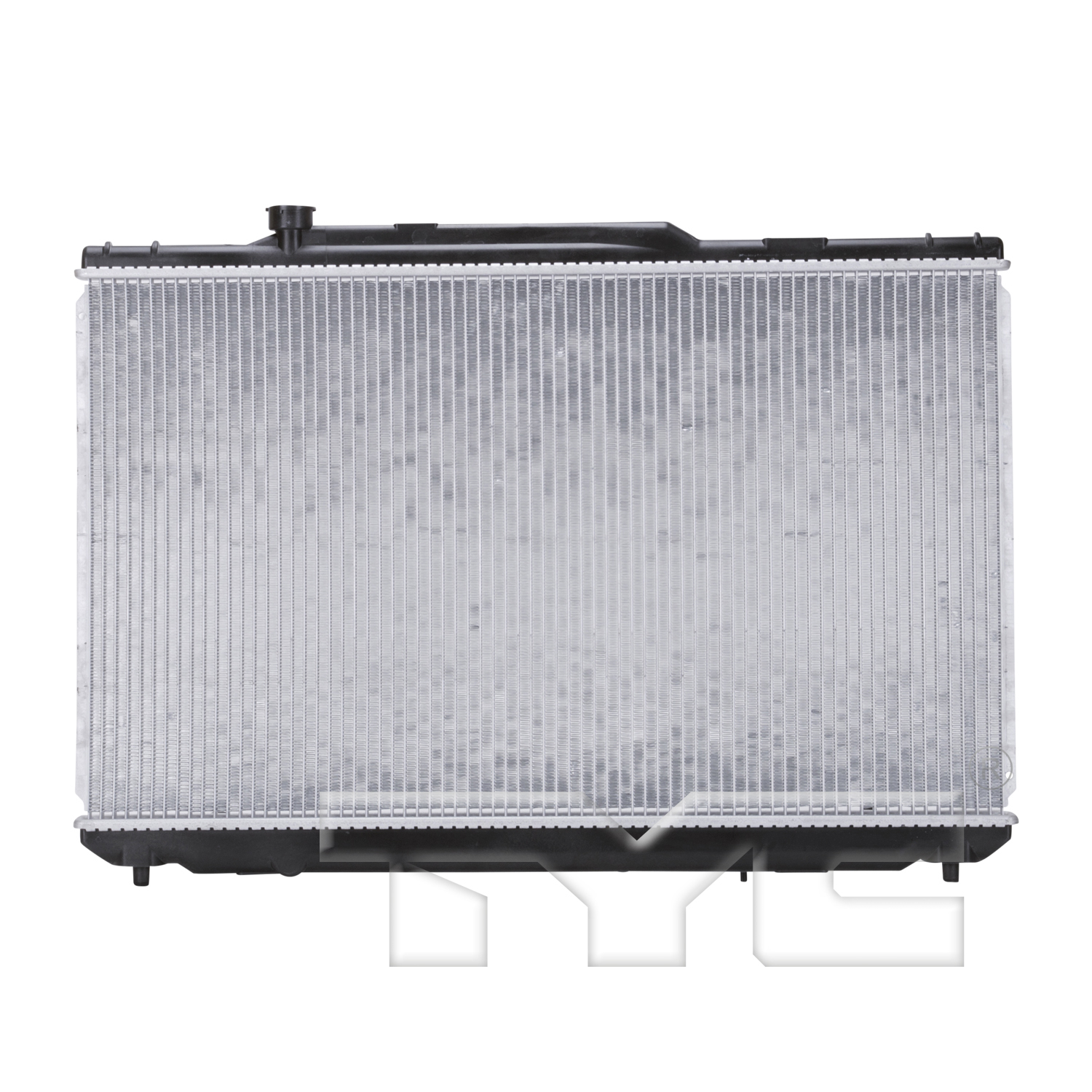

TYC Radiator Assembly

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Rigorous and accelerated cycling tests to ensure product service quality and durability. Individually leak-tested to ensure product has no leaks.

Bottom Header:	2.01x29.13

Core Height (in):	28.27

Core Length (in):	16.73

Core Material:	Aluminum

Core Thickness (in):	0.63

Engine Oil Cooler Included:	No

Fin Count (every 4"):	85

Fin Wave Height (in):	0.31

Fin Wave Pitch:	2.4

Flow Configuration:	Downflow

Inlet Connection Type:	Hose Clamp

Inlet Diameter (in):	1.26

No. Of Rows:	1

Outlet Connection Type:	Hose Clamp

Outlet Diameter (in):	1.26

Toc Distance (in):	14.76

Toc Inlet Diameter (in):	0.39

Toc Inlet Type:	Tube fitting

Toc Outlet Diameter (in):	0.39

Toc Outlet Type:	Tube fitting

Top Header:	1.4x29.13

Total Fin Row Count:	72

Total Tube Count:	71

Transmission Oil Cooler Included:	Yes

Transmission Oil Cooler Type:	Concentric Oil Cooler

Tube Count (every 4"):	10

Tube Width X Height:	16x2

Buyers Guide Detail

Make	Model	Qualifiers	Year
Toyota	Camry	Position: Primary LE 2.2L L4 2164cc Wagon Automatic	1992-1996
Toyota	Camry	Position: Primary XLE 2.2L L4 2164cc Sedan Automatic	1992-1996
Toyota	Camry	Position: Primary LE 2.2L L4 2164cc Sedan Automatic	1992-1996
Toyota	Camry	Position: Primary DX 2.2L L4 2164cc Sedan Manual	1993-1996
Toyota	Camry	Position: Primary DX 2.2L L4 2164cc Sedan Automatic	1993-1996
Toyota	Camry	Position: Primary LE 2.2L L4 2164cc Coupe Automatic	1994-1996
Toyota	Camry	Position: Primary DX 2.2L L4 2164cc Coupe Manual	1994-1996
Toyota	Camry	Position: Primary DX 2.2L L4 2164cc Coupe Automatic	1994-1996
Toyota	Camry	Position: Primary DX 2.2L L4 2164cc Wagon Automatic	1993-1994
Toyota	Camry	Position: Primary DX 2.2L L4 2164cc Wagon Manual	1993-1994
Toyota	Camry	Position: Primary DLX 2.2L L4 2164cc Sedan Automatic	1992
Toyota	Camry	Position: Primary DLX 2.2L L4 2164cc Sedan Manual	1992
Toyota	Camry	Position: Primary DLX 2.2L L4 2164cc Wagon Manual	1992
Toyota	Camry	Position: Primary DLX 2.2L L4 2164cc Wagon Automatic	1992
Toyota	Camry	Position: Primary SE 2.2L L4 2164cc Sedan Manual	1992
Toyota	Camry	Position: Primary SE 2.2L L4 2164cc Sedan Automatic	1992

Interchange is provided as a reference. Please check part specifications to verify fit.

Reference Number	Reference Name
16400-03061	Toyota
2048	CSF
221-3100 / 221-3131	DENSO
376707511	Hella
432363	Vista Pro
7270	Silla Cooling
8011318	APDI
9760	Visteon
CU1318	Spectra Premium
TO3010115	Partslink
TY37004A	Tong Yang

Additional Product Information

Country Of Origin	China
Life Cycle Status	Announced
