Radiator

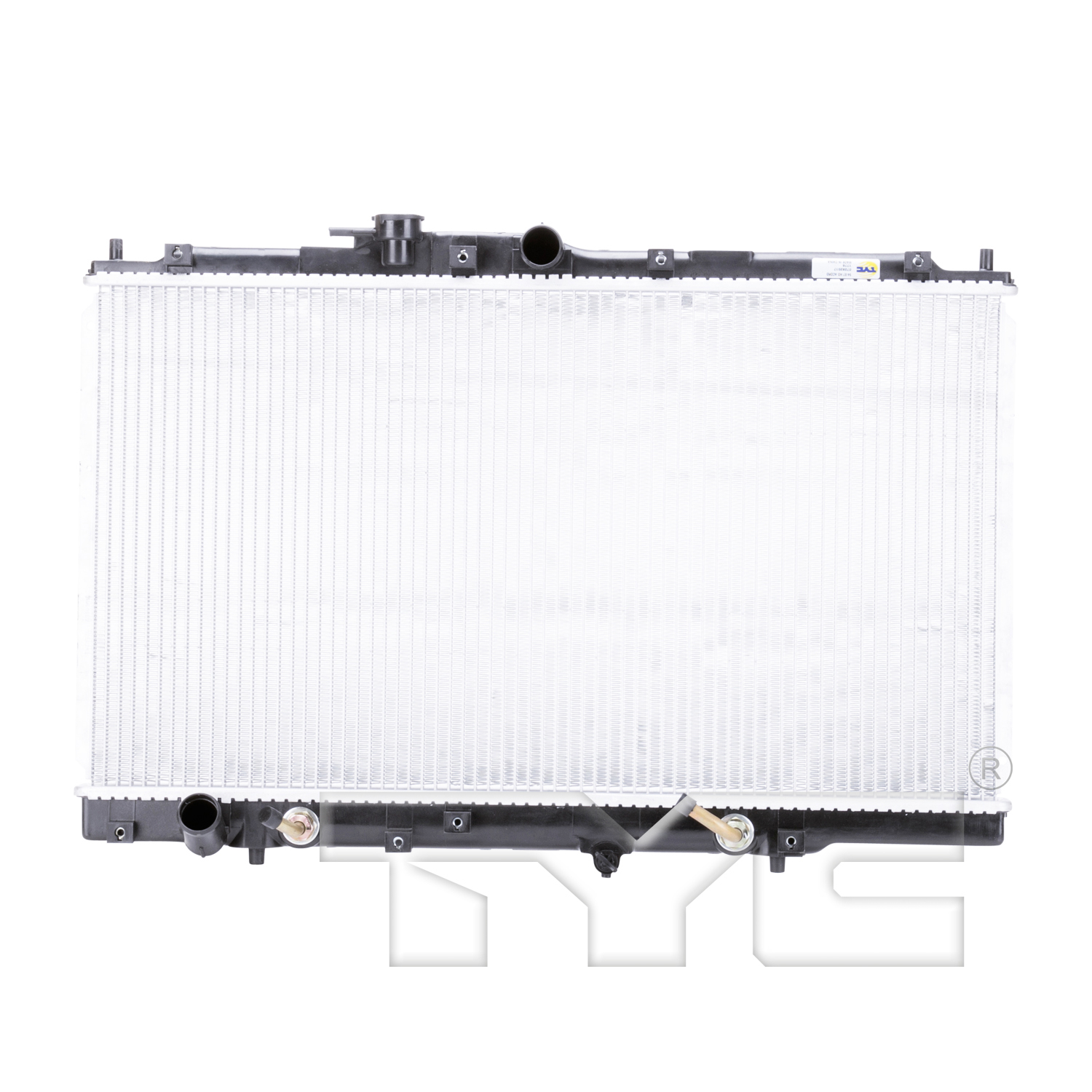

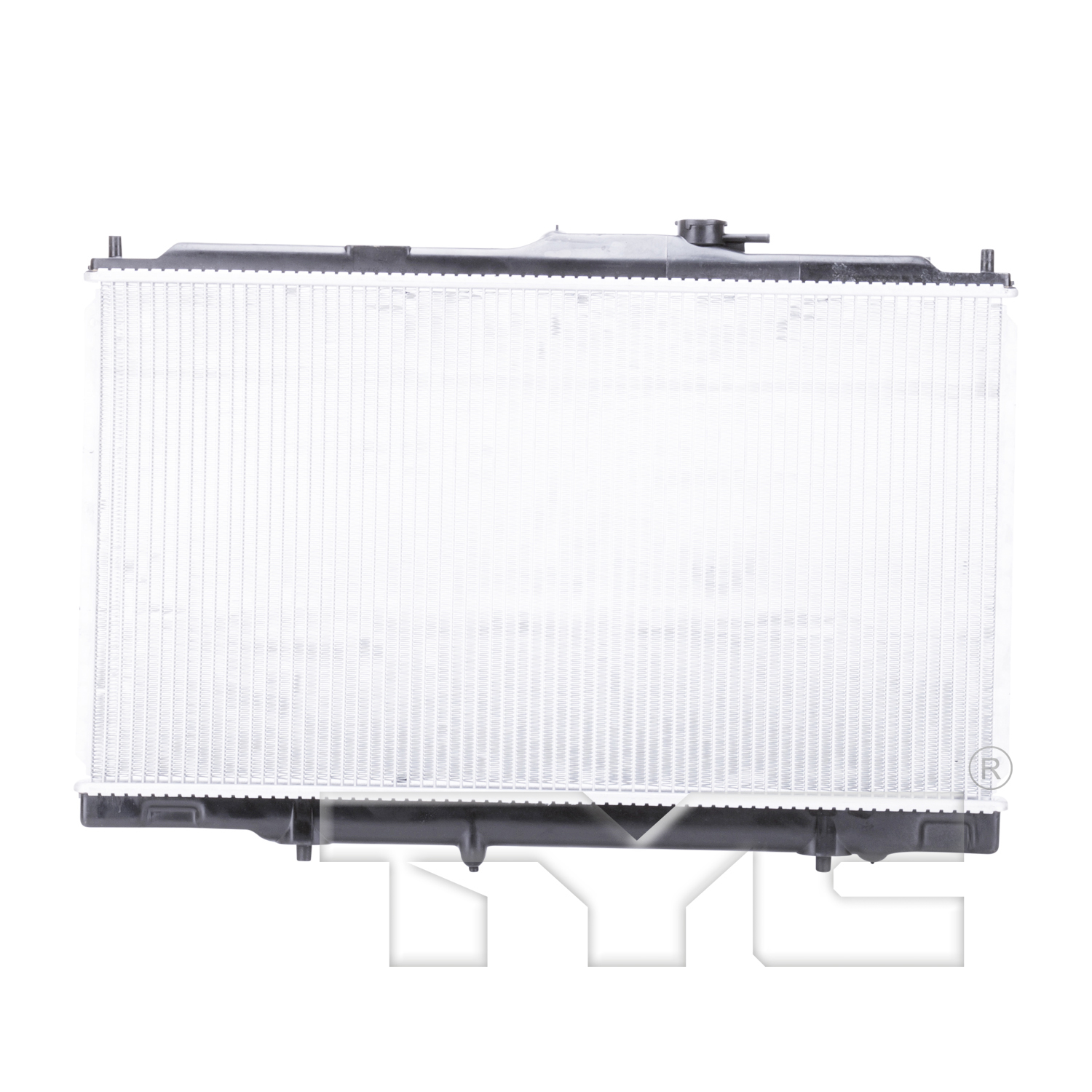

TYC Radiator Assembly

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Rigorous and accelerated cycling tests to ensure product service quality and durability. Individually leak-tested to ensure product has no leaks.

Bottom Header:	2.02x27.66

Core Height (in):	26.69

Core Length (in):	14.76

Core Material:	Aluminum

Core Thickness (in):	0.63

Engine Oil Cooler Included:	No

Fin Count (every 4"):	64

Fin Wave Height (in):	0.31

Fin Wave Pitch:	3.2

Flow Configuration:	Downflow

Inlet Connection Type:	Hose Clamp

Inlet Diameter (in):	1.34

No. Of Rows:	1

Outlet Connection Type:	Hose Clamp

Outlet Diameter (in):	1.34

Toc Distance (in):	12.80

Toc Inlet Diameter (in):	0.39

Toc Inlet Type:	Tube fitting

Toc Outlet Diameter (in):	0.39

Toc Outlet Type:	Tube fitting

Top Header:	1.43x27.66

Total Fin Row Count:	68

Total Tube Count:	67

Transmission Oil Cooler Included:	Yes

Transmission Oil Cooler Type:	Concentric Oil Cooler

Tube Count (every 4"):	10

Tube Width X Height:	16x2

Buyers Guide Detail

Make	Model	Qualifiers	Year
Acura	CL	Position: Primary Base 3.0L V6 2997cc Coupe	1997
Acura	CL	Position: Primary Premium 3.0L V6 2997cc Coupe	1997
Honda	Accord	Position: Primary LX 2.7L V6 2675cc Wagon	1995-1997
Honda	Accord	Position: Primary EX 2.7L V6 2675cc Coupe	1995-1997
Honda	Accord	Position: Primary LX 2.7L V6 2675cc Coupe	1995-1997
Honda	Accord	Position: Primary EX 2.7L V6 2675cc Sedan	1995-1997
Honda	Accord	Position: Primary LX 2.7L V6 2675cc Sedan	1995-1997
Honda	Accord	Position: Primary EX 2.7L V6 2675cc Wagon	1995-1997

Interchange is provided as a reference. Please check part specifications to verify fit.

Reference Number	Reference Name
19010-P0G-A51	Acura
19010-P0G-A51	Honda
221-3201	DENSO
2567	CSF
432501	Vista Pro
7334	Silla Cooling
8011776	APDI
9671	Visteon
AC3010114	Partslink
CU1776	Spectra Premium
HD37005A	Tong Yang

Additional Product Information

Country Of Origin	China
Life Cycle Status	Announced
