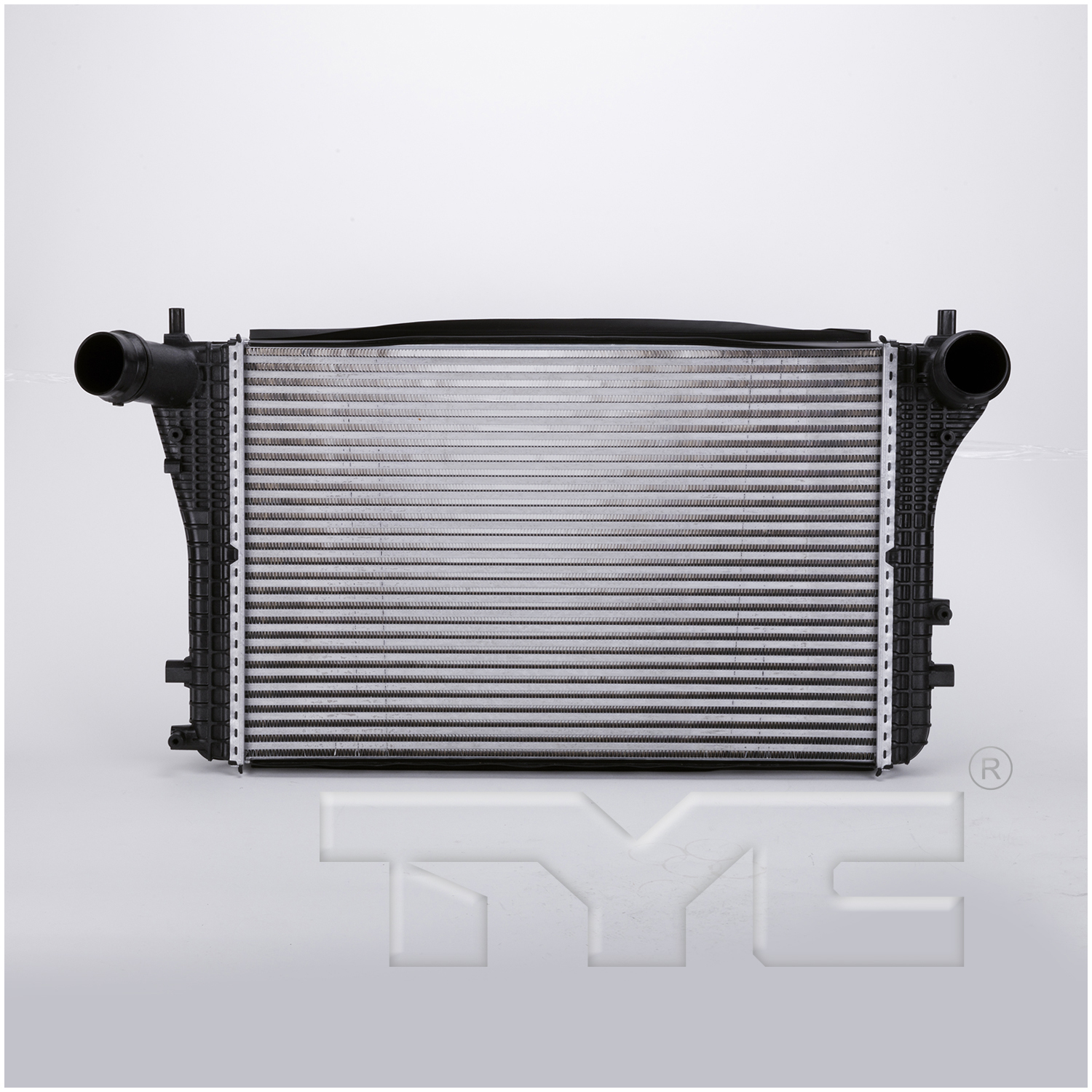

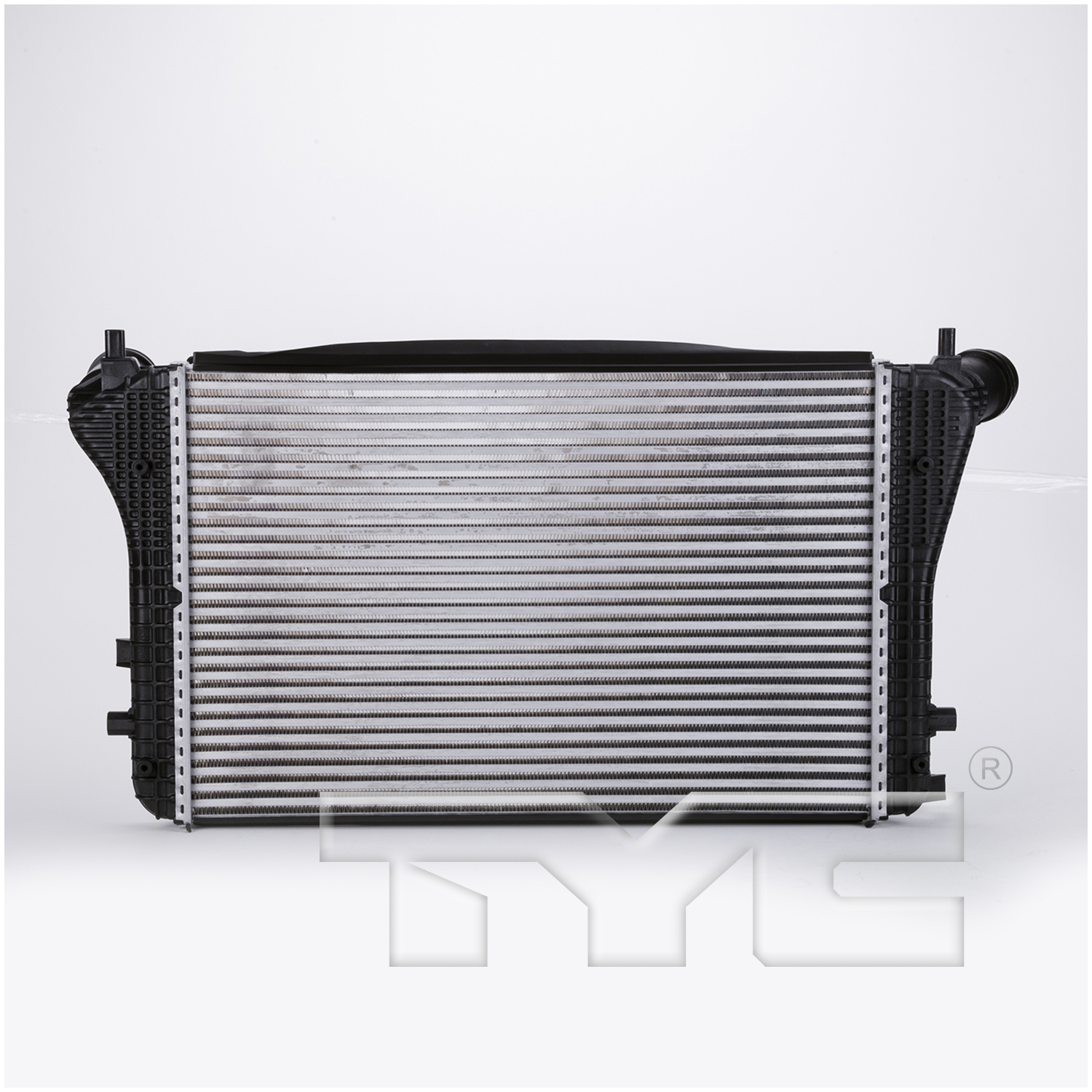

18004Intercooler

TYC Intercooler


  • OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.
  • Rigorous high pressure cycling tests to ensure product durability in high pressure turbocharged vehicles.
  • Individually leak-tested to ensure product has no leaks.

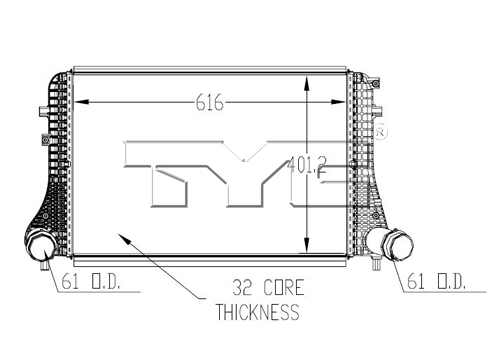

Bottom Header: 2.05x16.5
Core Height (in): 15.80
Core Length (in): 24.25
Core Material: Aluminum
Core Thickness (in): 1.26
Flow Configuration: Crossflow

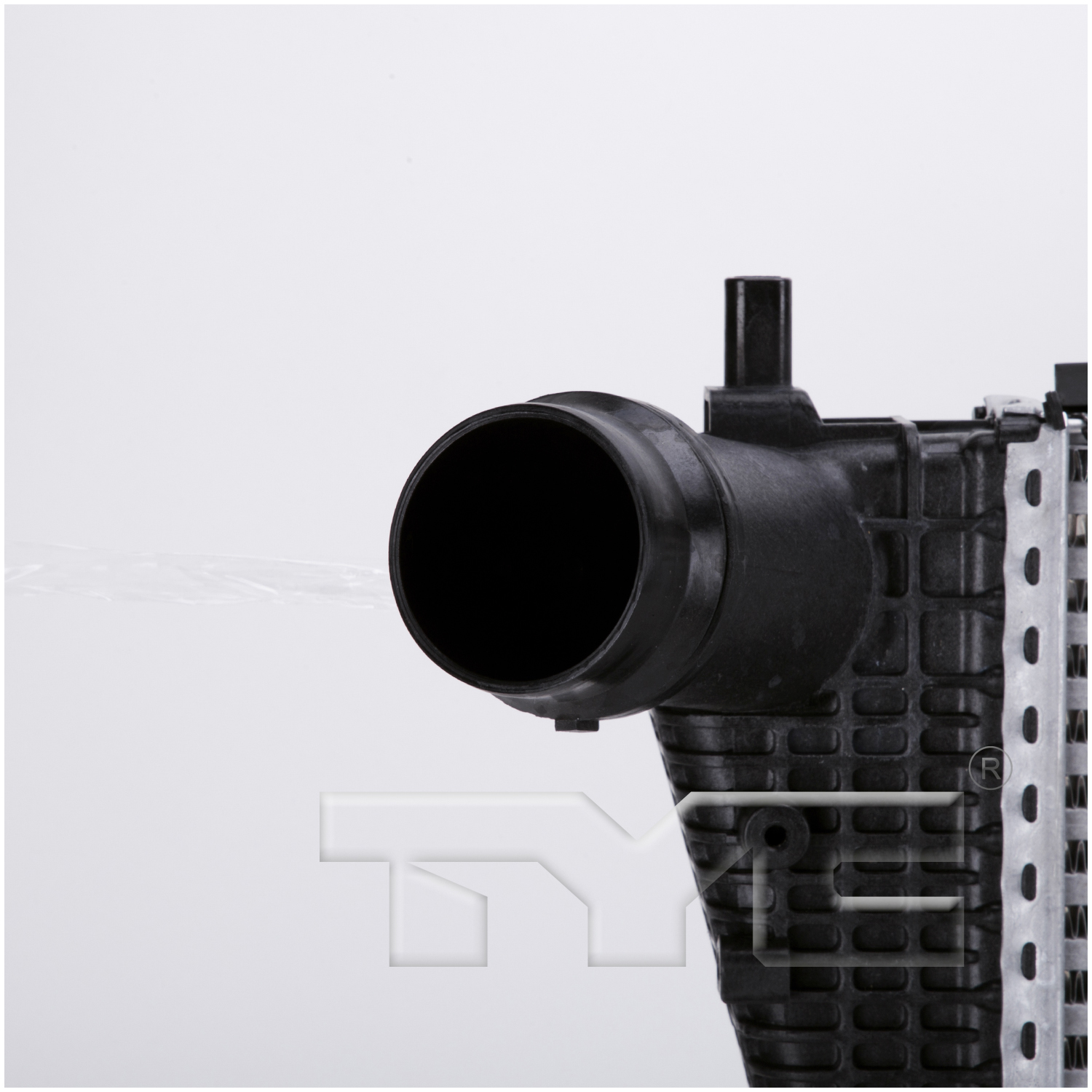

Inlet Connection Type: Quick Connect
Inlet Diameter (in): 2.40

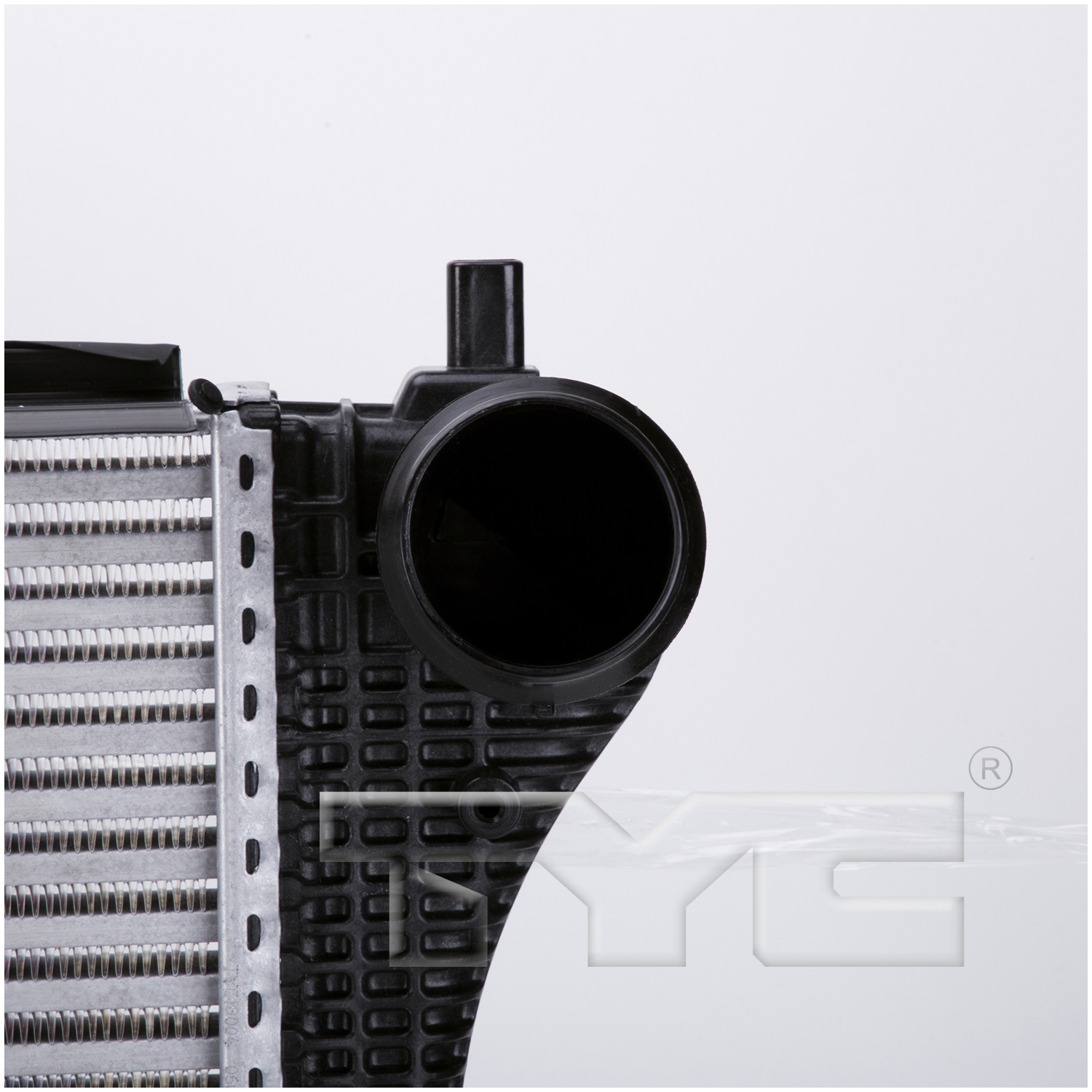

Outlet Connection Type: Quick Connect
Outlet Diameter (in): 2.40
Top Header: 2.05x16.5
Make Model Qualifiers Year
Audi A3
  • Position: N/A
  • TDI
  • 2.0L L4 1968cc 120ci
  • DIESEL
  • Hatchback
 2010-2013
Volkswagen Beetle
  • Position: N/A
  • TDI
  • 2.0L L4 1968cc 120ci
  • DIESEL
  • Convertible
 2013-2015
Volkswagen Beetle
  • Position: N/A
  • TDI
  • 2.0L L4 1968cc 120ci
  • DIESEL
  • Hatchback
 2013-2015
Volkswagen Golf
  • Position: N/A
  • TDI
  • 2.0L L4 1968cc 120ci
  • DIESEL
  • Hatchback
 2010-2014
Volkswagen Jetta
  • Position: N/A
  • TDI
  • 2.0L L4 1968cc 120ci
  • DIESEL
  • Wagon
 2009-2014
Volkswagen Jetta
  • Position: N/A
  • TDI
  • 2.0L L4 1968cc 120ci
  • DIESEL
  • Sedan
 2009-2010
Volkswagen Jetta
  • Position: N/A
  • TDI Cup Edition
  • 2.0L L4 1968cc 120ci
  • DIESEL
  • Sedan
 2010

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1K0 145 803 AEAudi
1K0 145 803 AEVolkswagen
4401-1114Spectra Premium
VW3012105Partslink

Country Of OriginChina
Life Cycle StatusAnnounced
