18119Intercooler

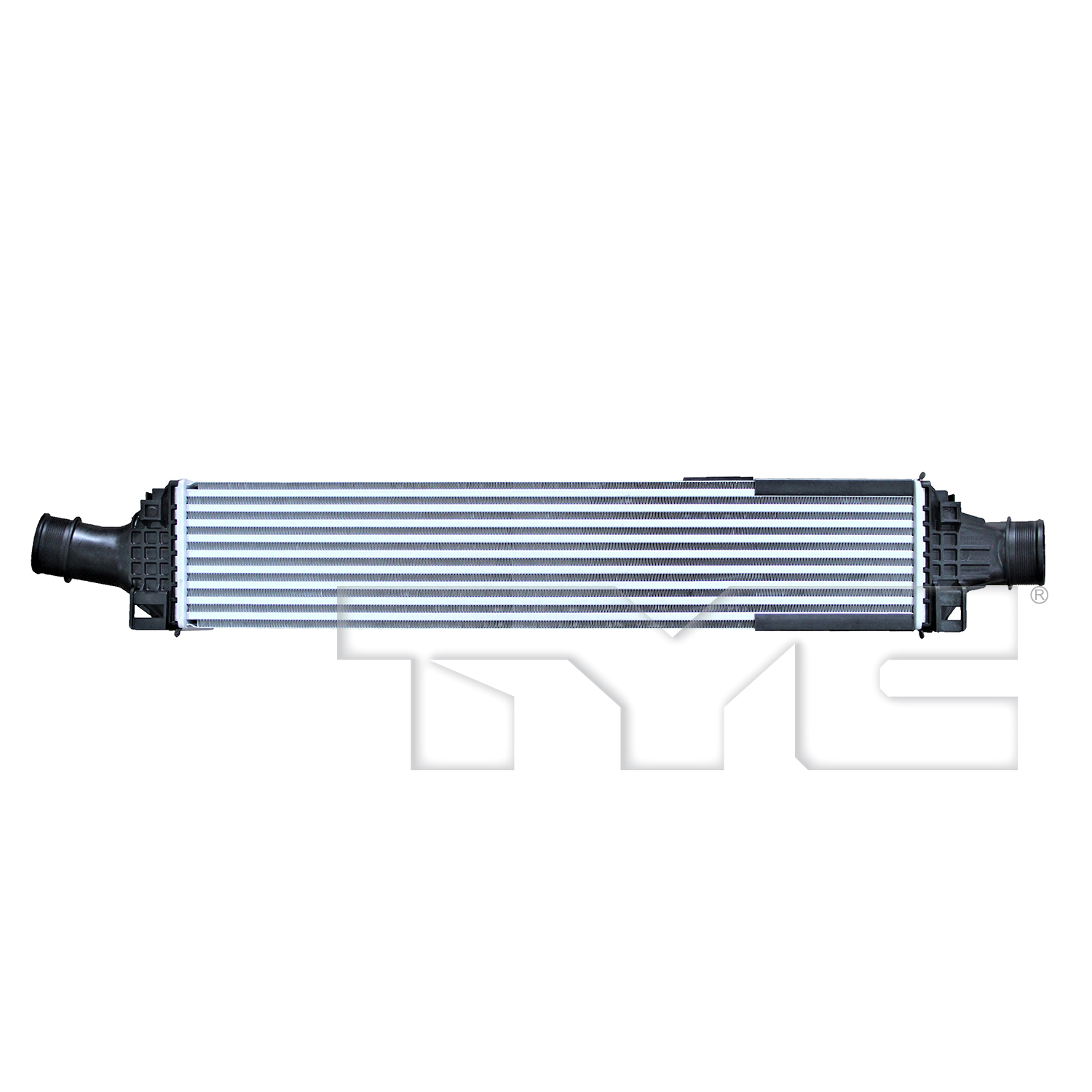

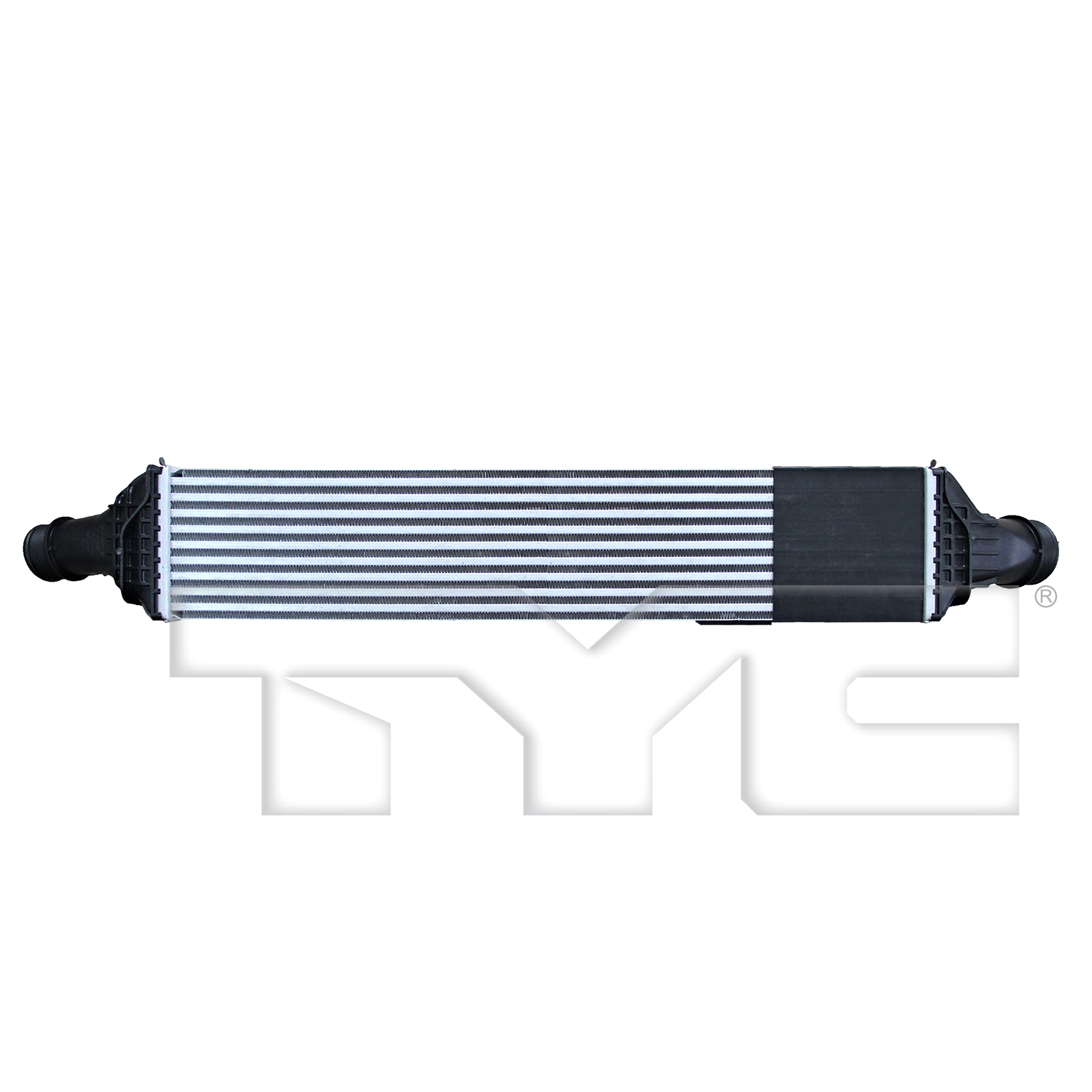

TYC Intercooler


  • OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.
  • Rigorous high pressure cycling tests to ensure product durability in high pressure turbocharged vehicles.
  • Individually leak-tested to ensure product has no leaks.

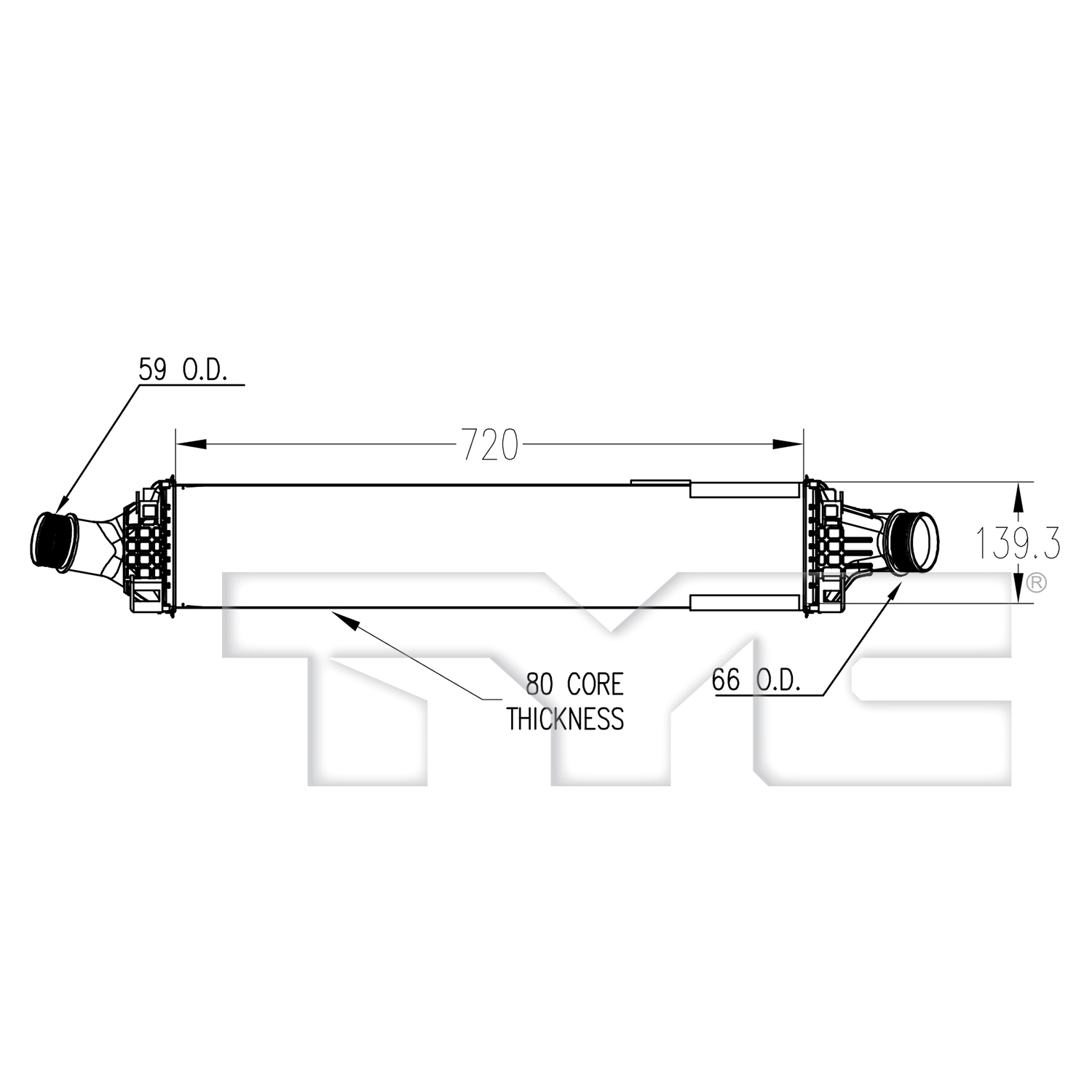

Core Height (in): 3.15
Core Length (in): 28.35
Core Material: Aluminum
Core Thickness: 5.48
Flow Configuration: Crossflow
Inlet Connection Type: Hose Clamp
Inlet Diameter: 66
Outlet Connection Type: Hose Clamp
Outlet Diamter: 59
Make Model Qualifiers Year
Audi Q5
  • Position: N/A
  • Titanium Prestige
  • 2.0L L4 1984cc 121ci
  • Sport Utility
 2020
Audi Q5
  • Position: N/A
  • Premium
  • 2.0L L4 1984cc 121ci
  • Sport Utility
 2018-2020
Audi Q5
  • Position: N/A
  • Premium Plus
  • 2.0L L4 1984cc 121ci
  • Sport Utility
 2018-2020
Audi Q5
  • Position: N/A
  • Prestige
  • 2.0L L4 1984cc 121ci
  • Sport Utility
 2018-2020
Audi Q5
  • Position: N/A
  • Titanium Premium
  • 2.0L L4 1984cc 121ci
  • Sport Utility
 2020
Audi Q5
  • Position: N/A
  • Titanium Premium Plus
  • 2.0L L4 1984cc 121ci
  • Sport Utility
 2020

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
80A 145 805 JAudi
AU3012115Partslink

Country Of OriginChina
Life Cycle StatusAnnounced
