18133Intercooler

TYC Intercooler


  • OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.
  • Rigorous high pressure cycling tests to ensure product durability in high pressure turbocharged vehicles.
  • Individually leak-tested to ensure product has no leaks.
California Proposition 65: WARNING - This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

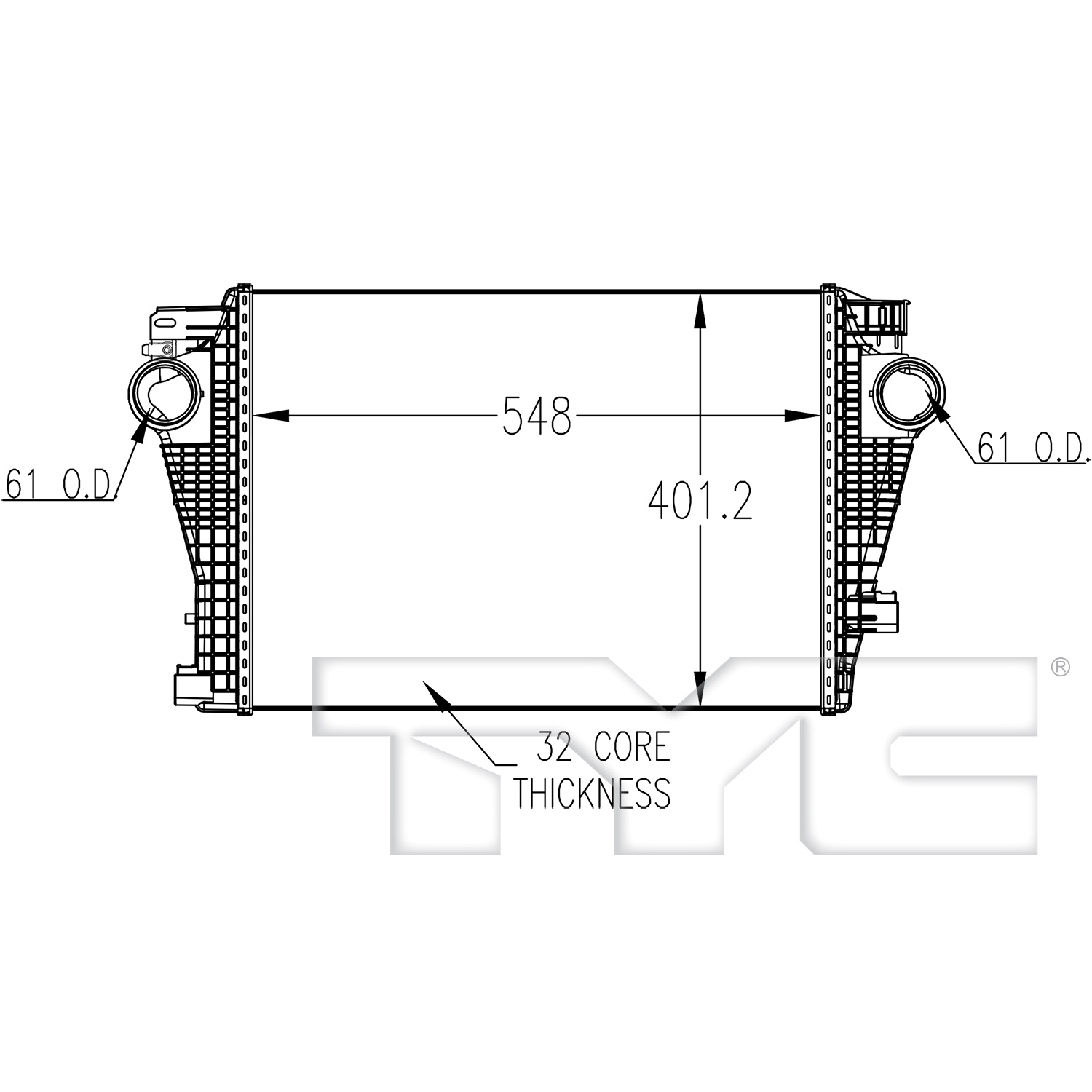

Core Height (in): 15.80
Core Length (in): 21.57
Core Material: Aluminum
Core Thickness (in): 1.26
Flow Configuration: Crossflow
Inlet Connection Type: Spring Lock
Inlet Diameter: 61mm
Outlet Connection Type: Spring Lock
Outlet Diamter: 61mm
Make Model Qualifiers Year
Cadillac ATS
  • Position: N/A
  • 2.0L L4 1998cc 122ci
  • Turbocharged
  • Coupe
 2015-2019
Cadillac ATS
  • Position: N/A
  • 2.0L L4 1998cc 122ci
  • Turbocharged
  • Sedan
 2013-2018
Cadillac CTS
  • Position: N/A
  • 2.0L L4 1998cc 122ci
  • Turbocharged
  • Sedan
 2014-2019
Chevrolet Camaro
  • Position: N/A
  • LT
  • 2.0L L4 1998cc 122ci
  • Turbocharged
  • Coupe
 2016-2022
Chevrolet Camaro
  • Position: N/A
  • LS
  • 2.0L L4 1998cc 122ci
  • Turbocharged
  • Coupe
 2017-2022
Chevrolet Camaro
  • Position: N/A
  • LT
  • 2.0L L4 1998cc 122ci
  • Turbocharged
  • Convertible
 2016-2022
Chevrolet Camaro
  • Position: N/A
  • LS
  • 2.0L L4 1998cc 122ci
  • Turbocharged
  • Convertible
 2017-2018

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
84356897Cadillac
GM3012125Partslink

Country Of OriginChina
Life Cycle StatusAnnounced
