Vehicle Fitment Finder
2987Radiator

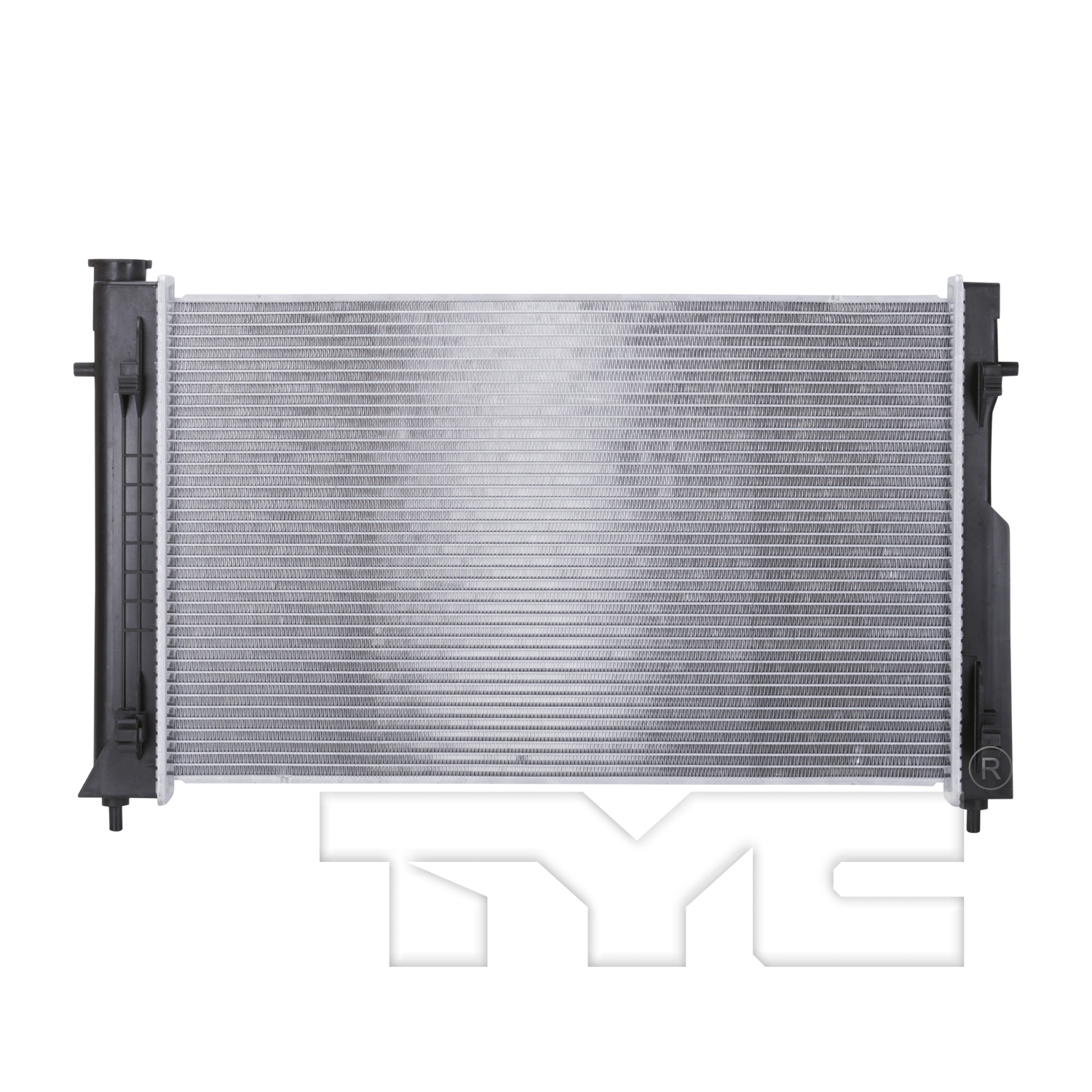

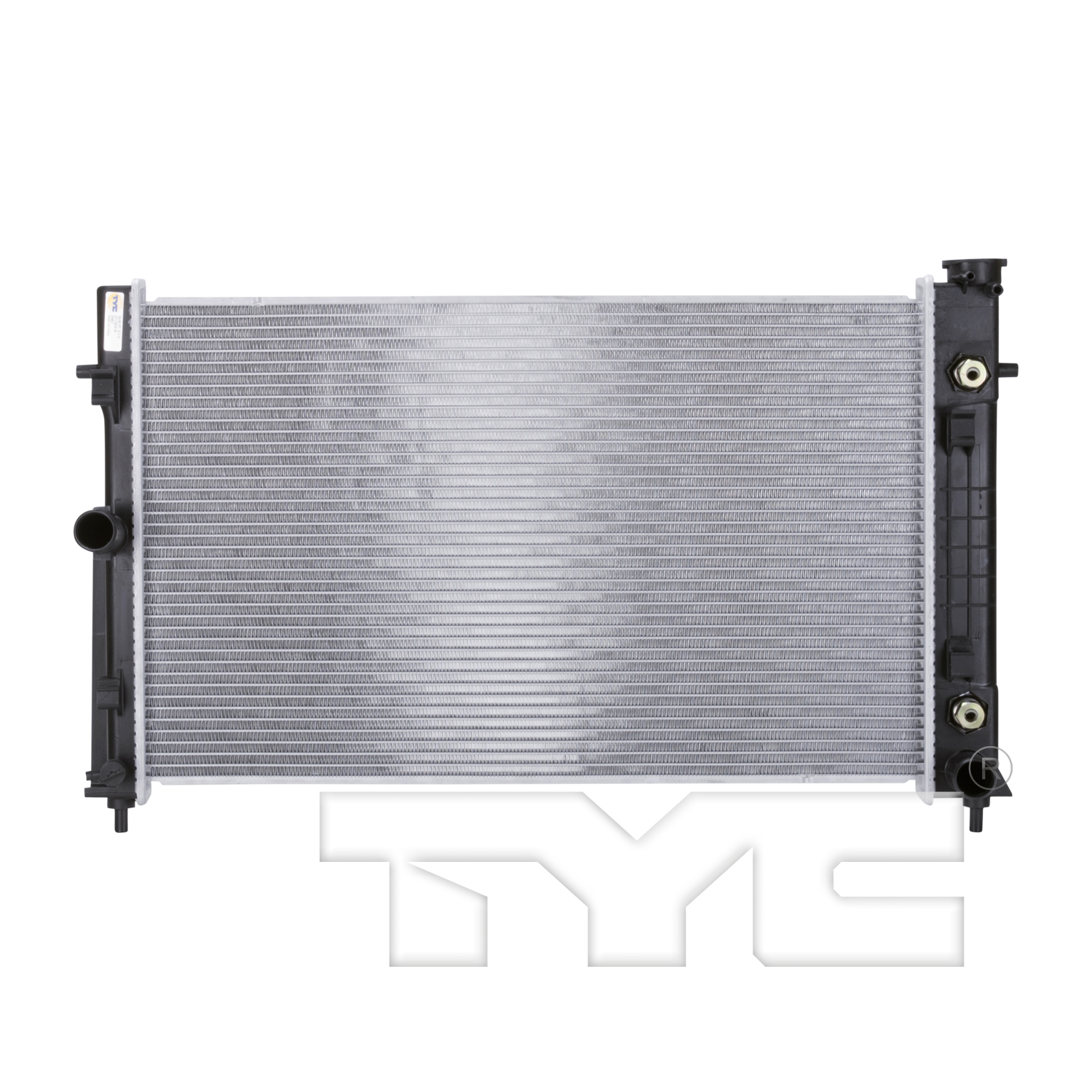

TYC Radiator Assembly


  • OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Rigorous and accelerated cycling tests to ensure product service quality and durability. Individually leak-tested to ensure product has no leaks.
Bottom Header: 2.91x17.99
Core Height (in): 16.06
Core Length (in): 26.5
Core Material: Aluminum
Core Thickness (in): 1.26
Engine Oil Cooler Included: No
Fin Count (every 4"): 64
Fin Wave Height (in): 0.31
Fin Wave Pitch: 3.2
Flow Configuration: Crossflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (in): 1.38
No. Of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (in): 1.38
Toc Distance (in): 11.50
Toc Inlet Diameter (in): 0.37
Toc Inlet Type: Quick Connect
Toc Outlet Diameter (in): 0.37
Toc Outlet Type: Quick Connect
Top Header: 2.44x17.99
Total Fin Row Count: 41
Total Tube Count: 40
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: Plate Oil Cooler
Tube Count (every 4"): 10
Tube Width X Height: 32x2
Make Model Qualifiers Year
Pontiac GTO
  • Position: Primary
  • 6.0L V8 5967cc 364ci
  • Coupe
  • Automatic
 2005-2006
Pontiac GTO
  • Position: Primary
  • 6.0L V8 5967cc 364ci
  • Coupe
  • Manual
 2005-2006

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
221-9179DENSO
2401CSF
438222Vista Pro
8012987APDI
92147990Pontiac
9505Silla Cooling
CU2987Spectra Premium
GM3010474Partslink

Country Of OriginChina
Life Cycle StatusAnnounced
