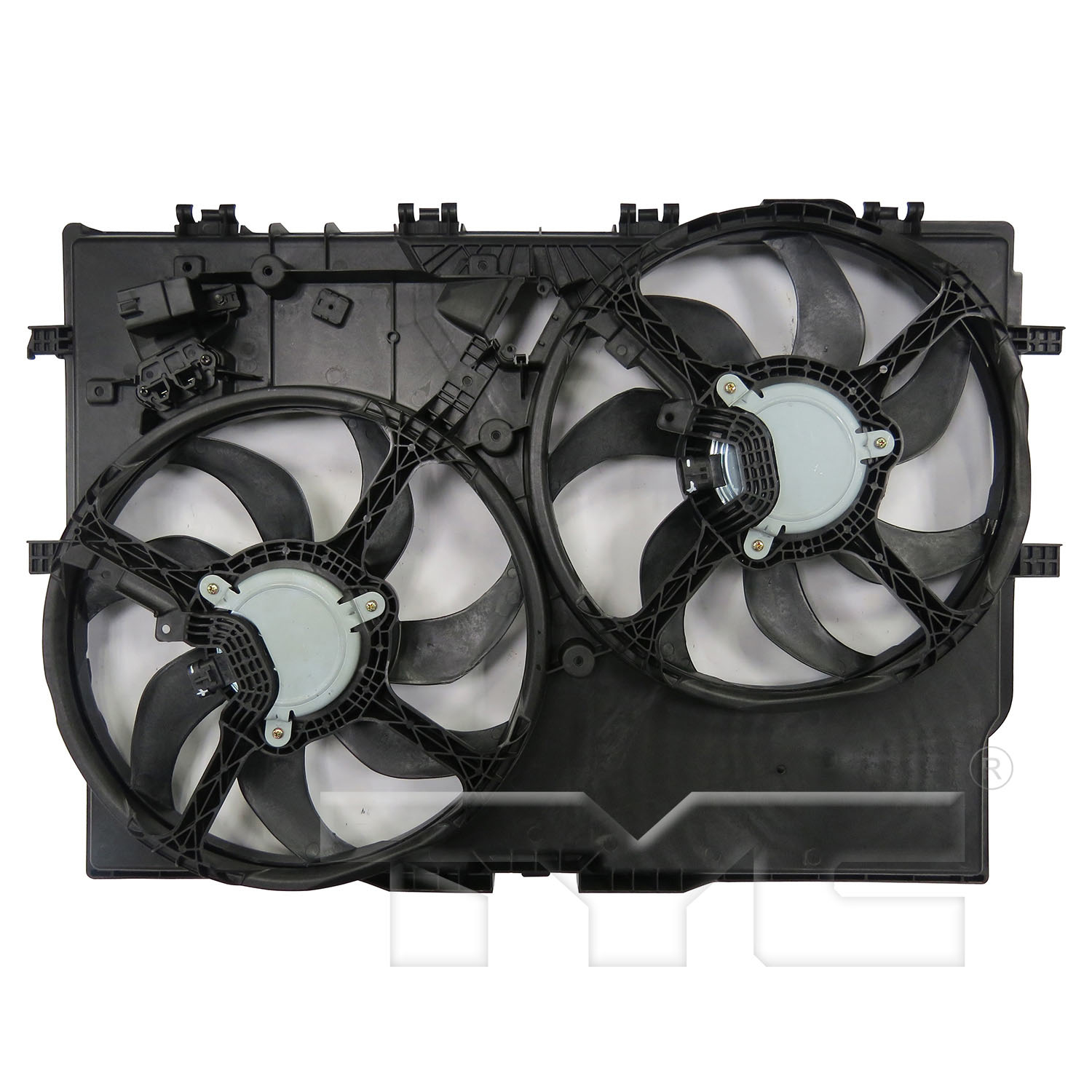

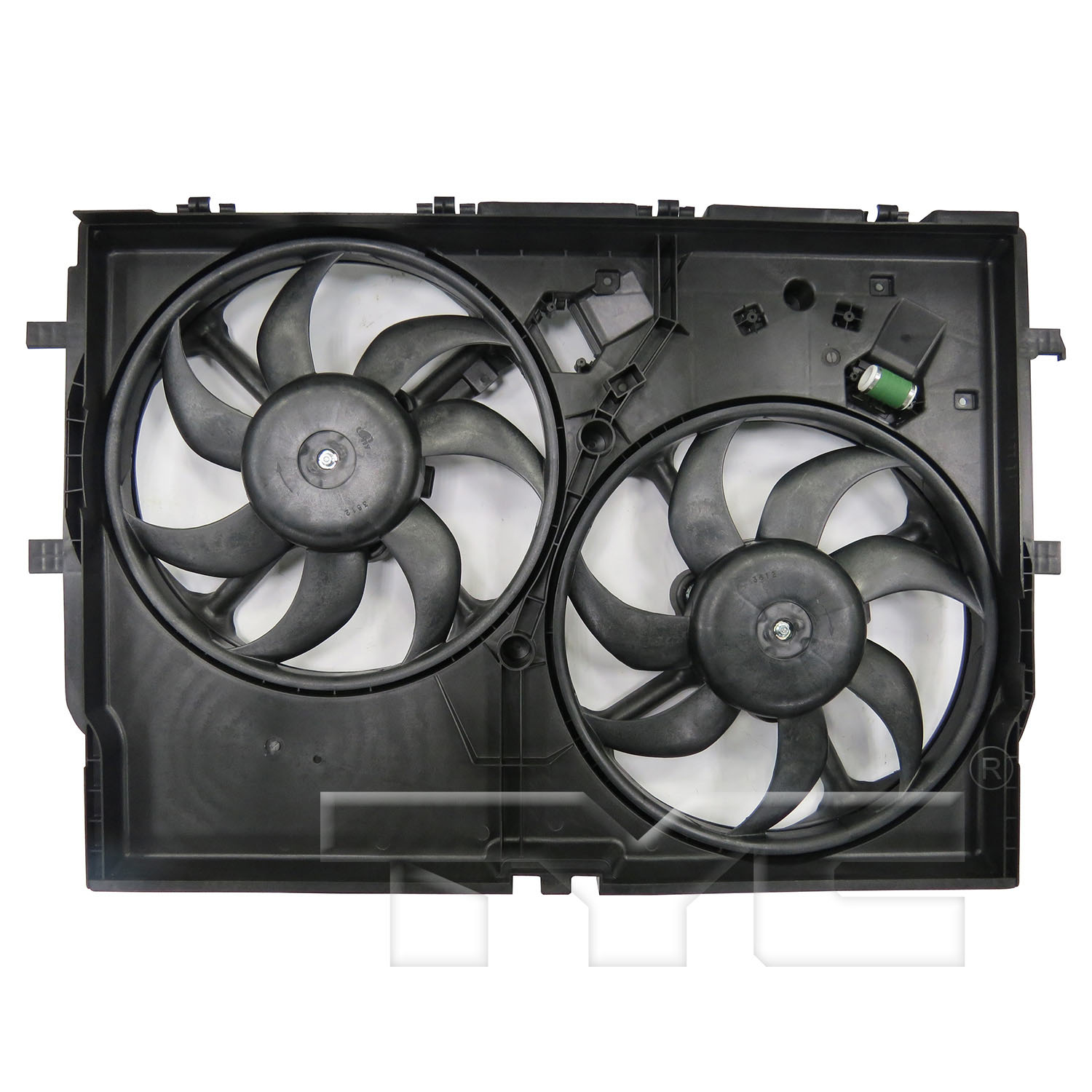

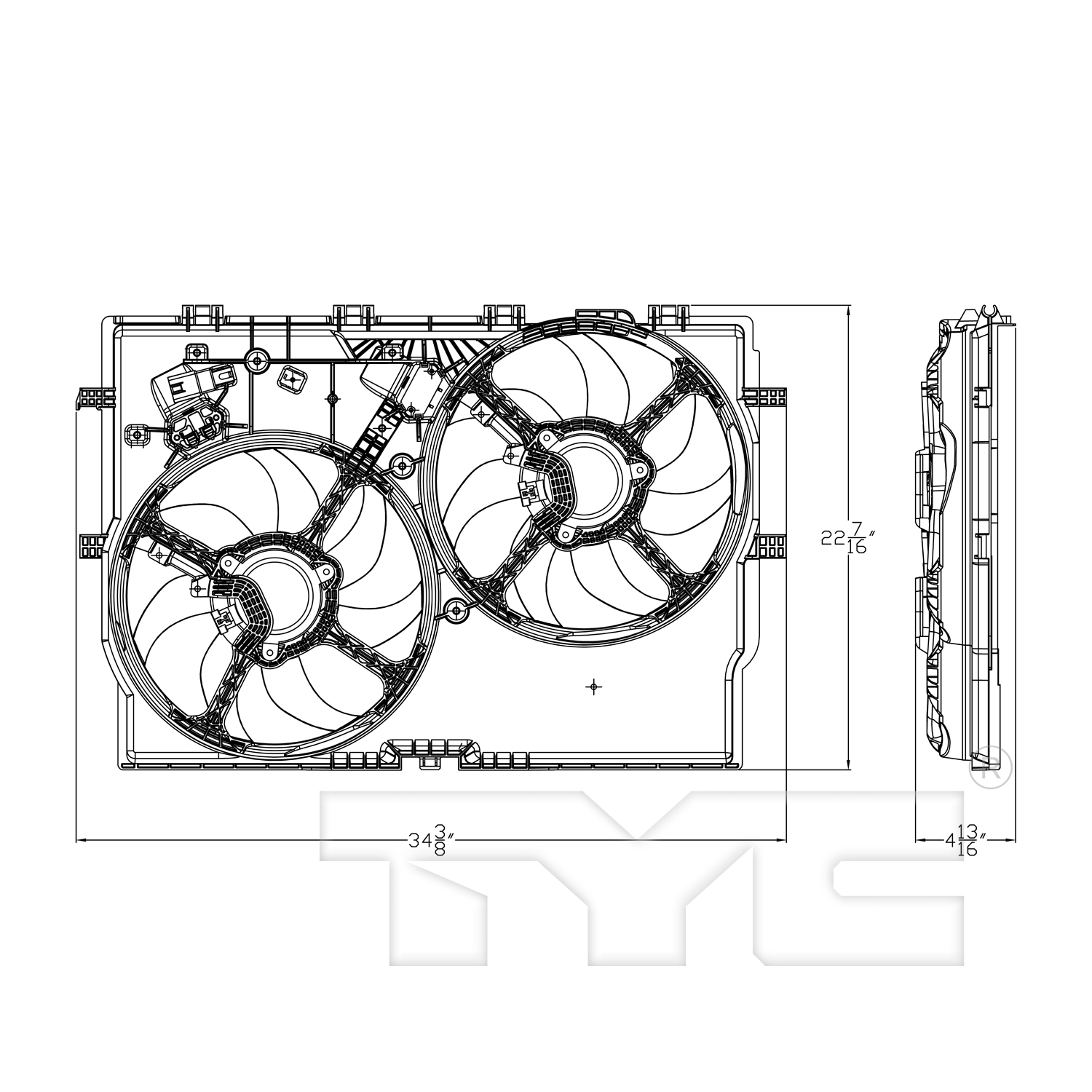

623720Dual Radiator and Condenser Fan Assembly

TYC Cooling Fan Assembly


  • OE-comparable harness (no pigtail connector) for hassle-free installation.
  • OE-comparable mounting provisions ensure drop-in precise fitment.
  • Rigorous laboratory and in-vehicle tests to ensure durability and performance.
Configuration: Dual Radiator and Condenser Fan Assembly

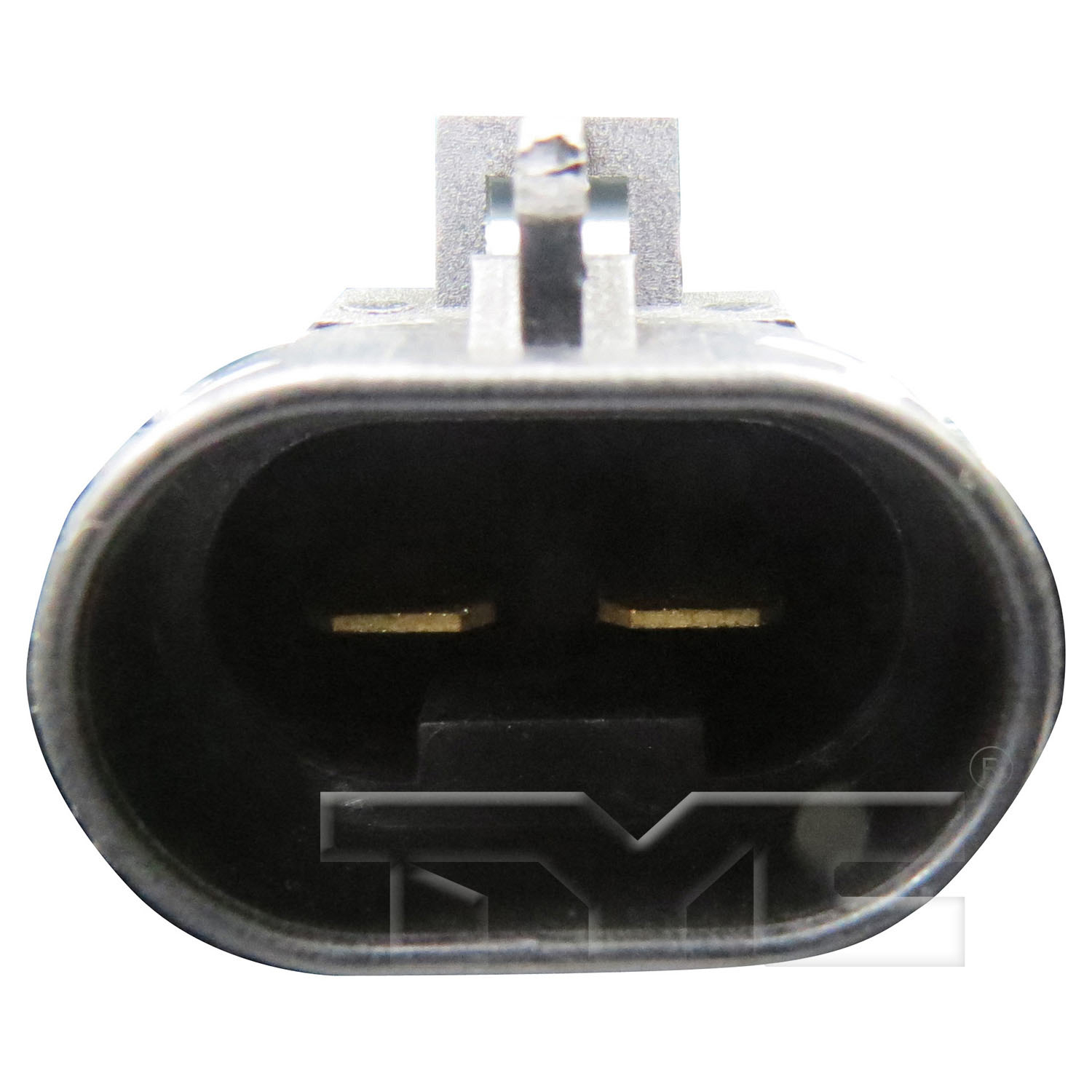

Connector Quantity: 2
Connector Terminal Quantity: 4
Connector Type: Male
Fan Blade Material: PA+GF
Fan Type: Dual Fan
Remarks: w/o A/C
Shroud Material: PA+GF
Make Model Qualifiers Year
Ram ProMaster 1500
  • Position: N/A
  • 3.6L V6 3604cc 220ci
  • Standard Cargo Van
 2014-2023
Ram ProMaster 1500
  • Position: N/A
  • 3.0L L4 2998cc 183ci
  • Standard Cargo Van
 2014-2017
Ram ProMaster 1500
  • Position: N/A
  • 3.6L V6 3605cc 220ci
  • Standard Cargo Van
 2014-2016
Ram ProMaster 2500
  • Position: N/A
  • 3.6L V6 3604cc 220ci
  • Standard Cargo Van
 2014-2023
Ram ProMaster 2500
  • Position: N/A
  • 3.0L L4 2998cc 183ci
  • Standard Cargo Van
 2014-2018
Ram ProMaster 2500
  • Position: N/A
  • 3.6L V6 3605cc 220ci
  • Standard Cargo Van
 2014-2016
Ram ProMaster 3500
  • Position: N/A
  • 3.6L V6 3604cc 220ci
  • Standard Cargo Van
 2014-2023
Ram ProMaster 3500
  • Position: N/A
  • 3.6L V6 3604cc 220ci
  • Extended Cargo Van
 2015-2023
Ram ProMaster 3500
  • Position: N/A
  • 3.0L L4 2998cc 183ci
  • Standard Cargo Van
 2014-2018
Ram ProMaster 3500
  • Position: N/A
  • 3.0L L4 2998cc 183ci
  • Extended Cargo Van
 2015-2018
Ram ProMaster 3500
  • Position: N/A
  • 3.6L V6 3605cc 220ci
  • Standard Cargo Van
 2014-2016

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
621-638Dorman
68188994ADRam
CH3115185Partslink

Country Of OriginTaiwan
Life Cycle StatusAnnounced
