96036HVAC Heater Core

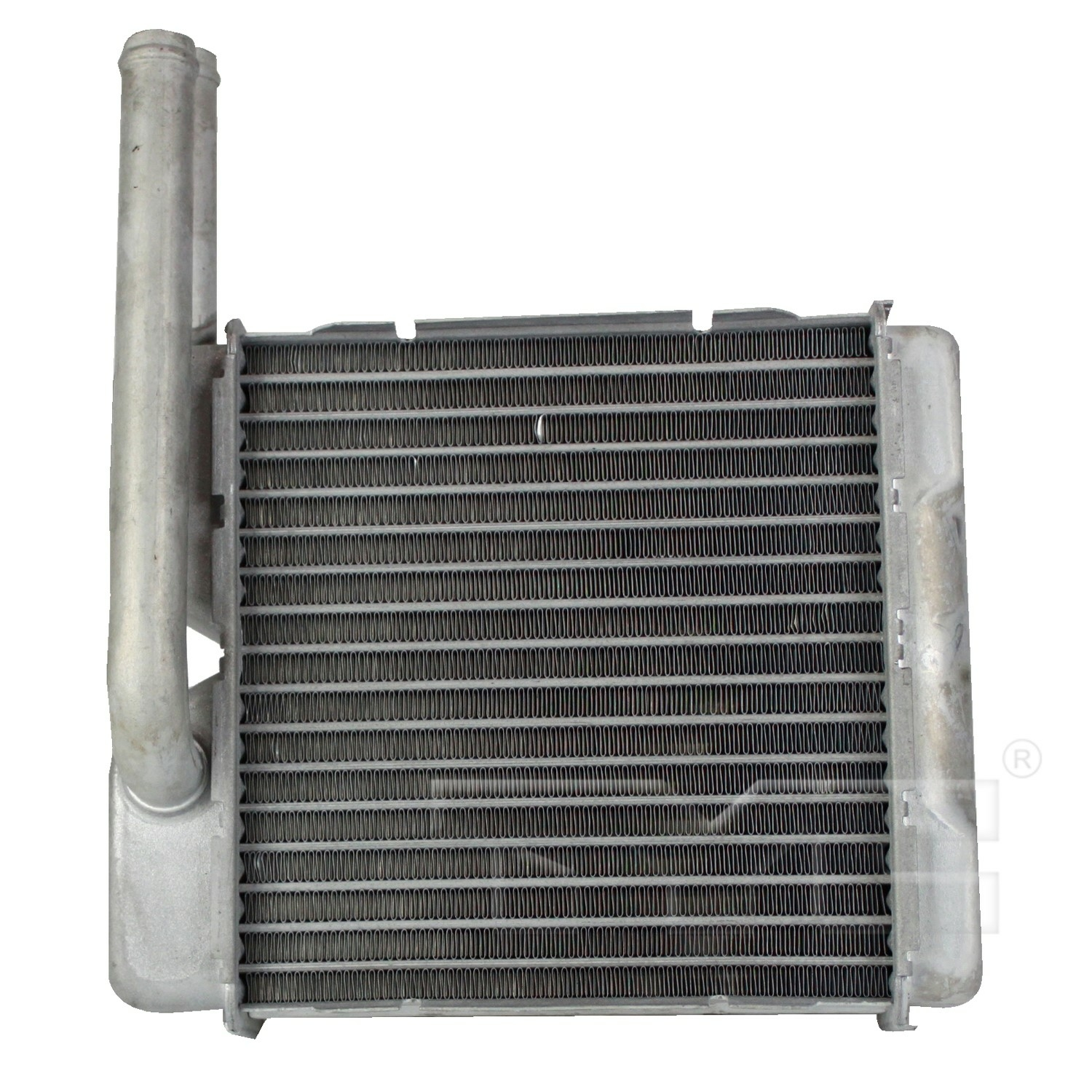

TYC HVAC Heater Core


  • Designed and Manufactured to OE standards for simple drop in fit and performance. Precision cut fins and tubes for exceptional cooling efficiency. Additional clamps and crimps to improve tightness and sealing on most tanks.

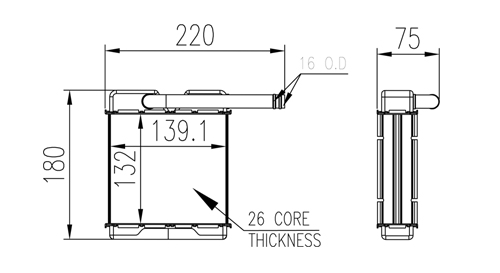

Bottom Header: 1.93x5.98
Core Height (in): 5.47
Core Length (in): 5.20
Core Material: Aluminum
Core Thickness (in): 1.26
Inlet Connection Type: Hose Clamp
Inlet Diameter (in): 0.63
Outlet Connection Type: Hose Clamp
Outlet Diameter (in): 0.63
Top Header: 1.93x5.98
Make Model Qualifiers Year
Ford Bronco
  • Position: Front
  • All Configurations
 1966-1977
Ford F-100
  • Position: Front
  • All Configurations
 1965-1979
Ford F-150
  • Position: Front
  • All Configurations
 1975-1979

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
18-11698Reach Cooling
399024Vista Pro
399024Proliance
9010101APDI
94572Spectra Premium
98572OSC
C6TE18476BFord
C6TE18476CFord

Country Of OriginChina
Life Cycle StatusAnnounced
